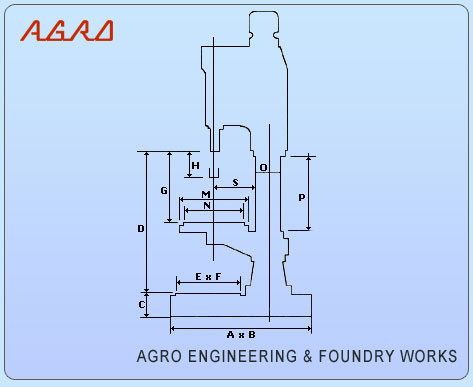

| Models | AG-40 Geared | AG-50 Geared | ||
|---|---|---|---|---|
| Drill Capacity in Steel | MM | 50 | 50 | |
| Maximum Diameter of Table | M | MM | 495 | 545 |
| Woriking Surface of Table | N | MM | 400 | 445 |
| Vertical Travel of Table | P | MM | 610 | 600 |
| Size of Base | AxBxC | MM | 505x965x145 | 560x1080x155 |
| Working Surface of Base | EXF | MM | 430x385 | 455x470 |
| Spindle Travel | H | MM | 165 | 175 |
| Maximum Distance from Spindle to Table | G | MM | 610 | 600 |
| Maximum Distance from Spindle to Base | D | MM | 1100 | |
| Distance between center of Spindle and Column (Throat) | S | MM | 305 | 315 |
| Column Diameter | O | MM | 152 | 184 |
| Spindle Morse Taper | MT | 4 | 5 | |
| No. of Sppeds | No. | 9 | 9 | |
| Net Weight | KG. | 850 | 1050 | |
| Power Required | H.P | 2 | 3 | |
| Range of Spindle Speeds | RPM | 65, 115, 140, 215, 260, 300,410, 675, 1050 | 65, 115, 145, 210, 290, 380, 650, 97 | |
| No. of Feeds | 3/td> | 3 | ||
| Range of Feeds Per. Rev. | MM | 0.080 0.160 0.290 | 0.125 0.250 0.400 |
